Description
ST-AM02C AM Security Gate (TX+RX)
The ST-AM02C is a 58 kHz AM security antenna that runs as a dual master–slave (TX+RX) pair. It detects up to about 2.5 meters depending on the tag — roughly 1.2–1.4 m for a DR soft label, up to 2.5 m for a big pencil tag.
It runs on 110–230 V at 25 W, with an ABS body available in black or white. A dependable, good-looking gate for a shop entrance that needs reliable AM coverage.

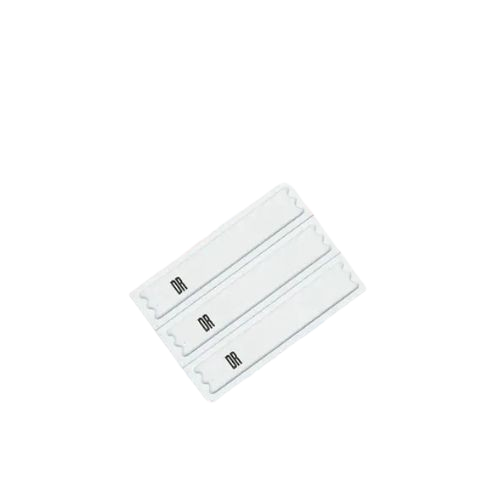

- DR Soft Label: 1.2m – 1.4m
- Mini Pencil Tag: 1.5m – 1.6m
- Big Pencil Tag: 1.7m – 2.5m
Specifications
| Feature | Details |
|---|---|
| Technology | 58kHz AM system |
| Working Voltage | 110–230V, 50–60Hz |
| Rated Power | 25W |
| Material | ABS |
| Color Options | Black / White |
| Detection Distance | Up to 2.5m (depending on tag type) |
| Tag Detection Range |
|
| System Type | Dual (Master + Slave) |
